Hydraulic impact booms by SOOSAN offer perfect impact performance, high durability and long lifetime with minimum maintenance, making work with them very user-friendly. SOOSAN hydraulic booms range consists of 16 models of SB series (for machines up to 8t of weight, for excavators up to 55t) and 9 models of advanced SQ series (excavators from 15 to 90t). SOOSAN booms offer perfect impact performance and long lifetime with minimum maintenance requirements. With 30 years of experience, SOOSAN is a leader of innovation. Policy of constant improvement resulted in creating products that are beyond any competition. Since 1984 SOOSAN has produced over 150 000 impact booms – two thirds of which are still in service.

Compact booms

SB Booms

SQ booms

SOOSAN SB HYDRAULIC BOOMS

COMPACT BOOMS (MINI EXCAVATORS)

Description SB10 II TS-P SB20 II TS-P SB30 II TS-P SB35 II TS-P SB40 TS-P SB43 TS-P
Operational weight kg 102 126 152 224 295 375
Excavator weight ton 0.8~2.5 1.2~3.0 2.5~4.5 3.0~5.5 4.0~7.0 6.0~9.0
Height mm 1,135 1,213 1,317 1,472 1,620 1,899
Oil flow i/min 15~30 20~40 25~50 30~60 40~70 50~90
Operational pressure bar 90~120 90~120 90~120 110~130 110~130 120~150
Impact frequency bpm 800~1,400 700~1,200 600~1,100 500~1.000 500~900 400~800
Pike diameter mm 40 45 53 60 68 75

MIDDLE SIZE (BACKHOE LOADERS – WHEEL EXCAVATORS)

Description SB45 II TS-P SB50 II TS-P SB60 II TS-P SB70 II TS-P SB81 TS-P
Operational Weight kg 571 861 1,297 1,500 1,766
Excavator weight ton 7.0~14.0 11.0~16.0 15~18 16~21 18~26
Height mm 2,161 2,316 2,592 2,682 2,813
Oil Flow i/min 60~100 80~110 90~120 100~150 120~180
Operational pressure bar 130~160 150~170 150~170 160~180 160~180
Impact frequency bpm 400~800 350~700 350~650 350~600 350~500
Pike diameter mm 85 100 125 135 140

BIG SIZE (CATERPILLAR EXCAVATORS)

Description SB100 II TS-P SB121 II TS-P SB130 II TS-P SB140 II TS-P SB151 TS-P
Operational Weight kg 2,071 2,632 2,833 3,090 3,991
Excavator weight ton 25~30 28~35 30~45 30~45 40~55
Height mm 3,063 3,215 3,392 3,475 3,736
Oil Flow i/min 150~210 180~240 200~260 200~260 210~290
Operational pressure bar 160~180 160~180 160~180 160~180 160~180
Impact frequency bpm 300~450 300~450 250~400 200~350 200~350
Pike diameter mm 150 155 165 165 175

SQ Series

Description SQ60 SQ70 SQ80 SQ100 SQ120 SQ130 SQ140 SQ150 SQ180
Operational Weight kg 1,607 1,759 2,063 2,185 2,671 3,033 3,169 3,950 5,850
Excavator weight ton 15~18 16~21 18~26 25~30 28~35 20~45 30~45 40~55 50~90
Height mm 2,561 2,656 2,806 2,924 3,168 3,360 3,441 3,677 3,958
Oil Flow i/min 90~120 100~150 120~180 150~210 180~240 200~260 200~260 210~290 300~400
Operational pressure bar 150~170 160~180 160~180 160~180 160~180 160~180 160~180 160~180 160~180
Impact frequency H-mode bpm 350~650 350~600 350~500 300~450 300~450 250~400 200~350 200~350 200~300
L-mode 600~850 500~860 500~700 300~450 300~450 250~400 200~350 200~350 200~300
Pike diameter mm 125 135 140 150 155 165 165 175 197

APPLICATION EXAMPLES OF SOOSAN HYDRAULIC BOOMS

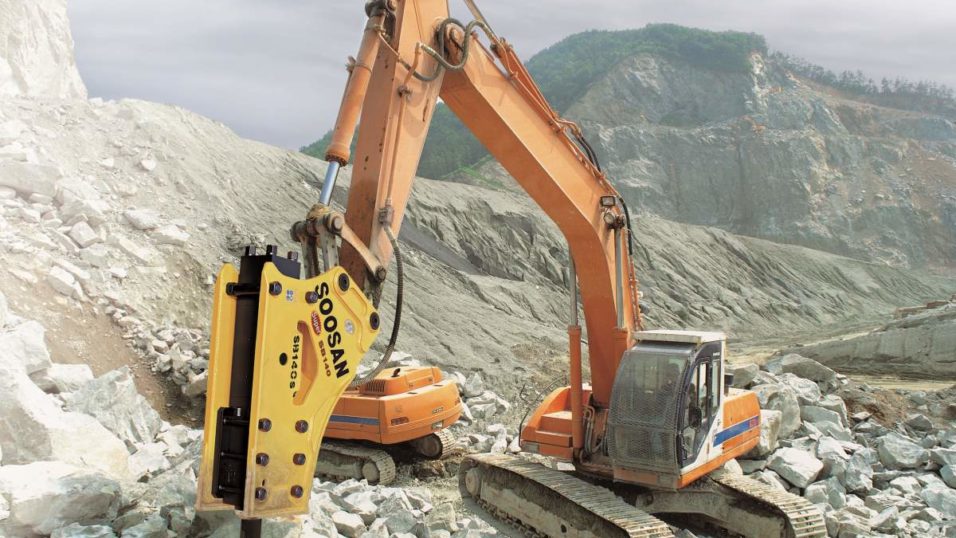

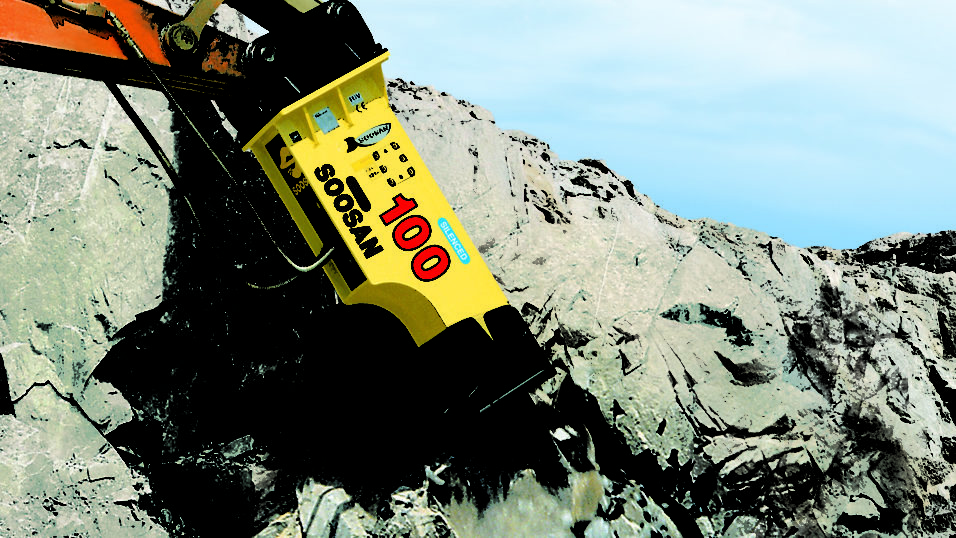

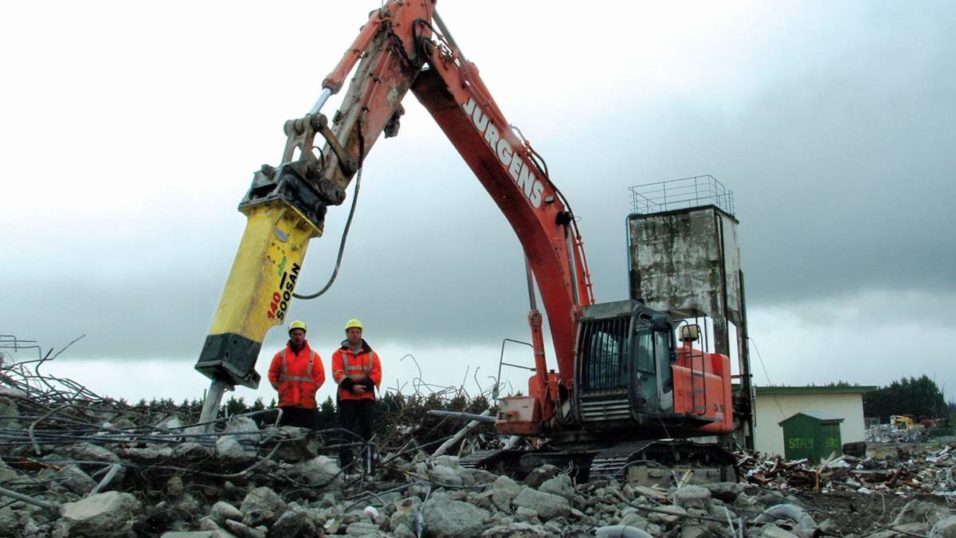

Soosan SB100 TSB boom demolishing works

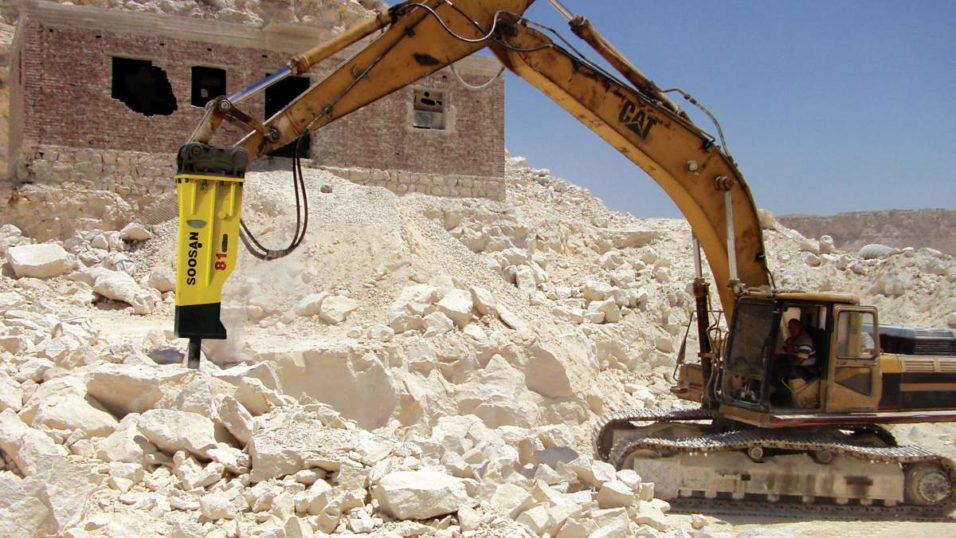

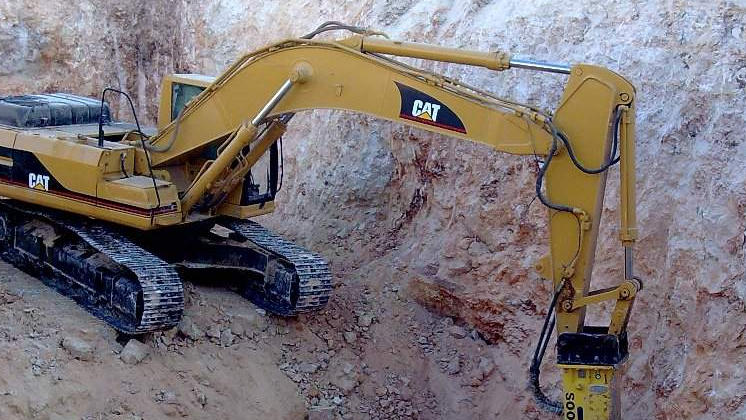

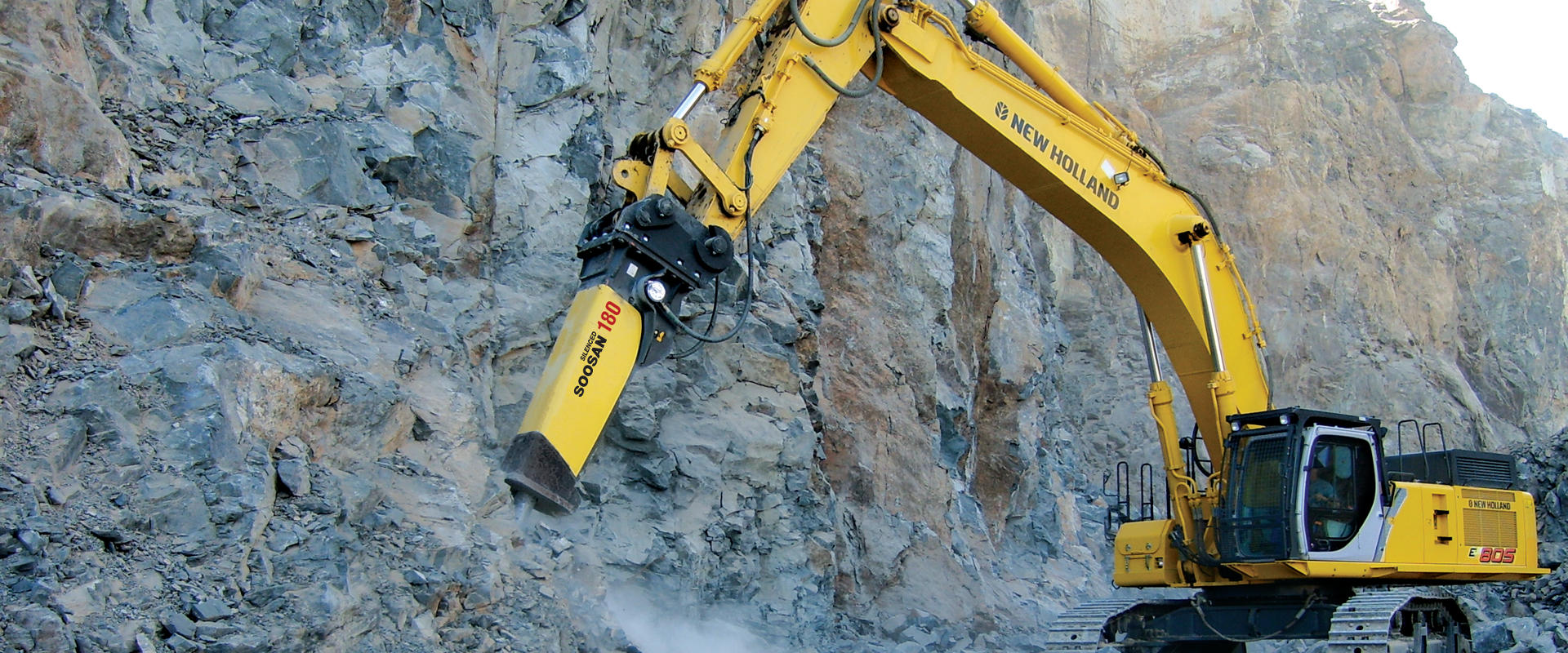

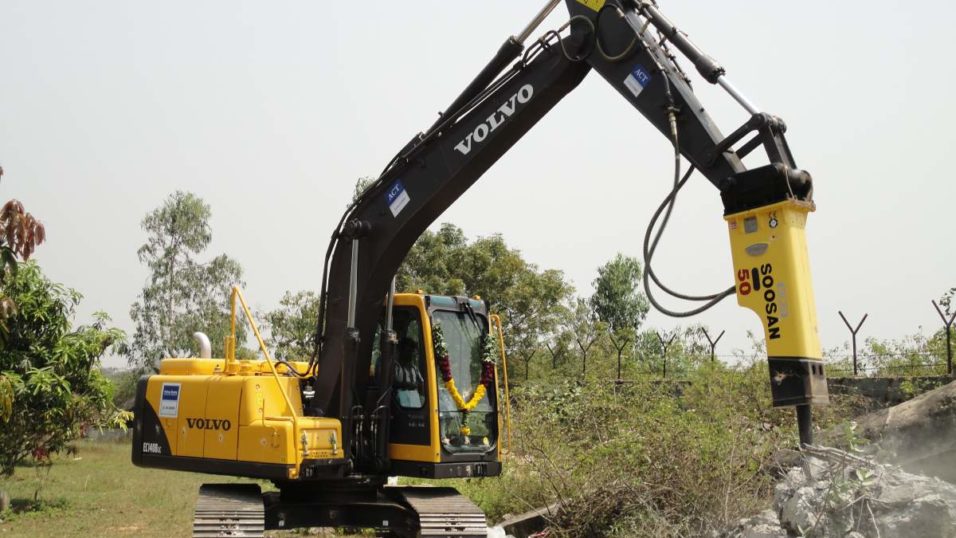

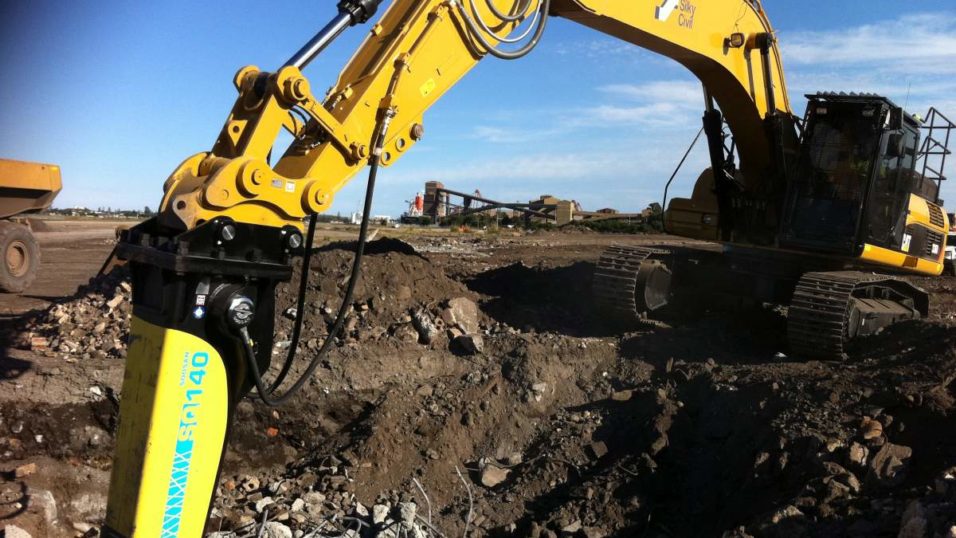

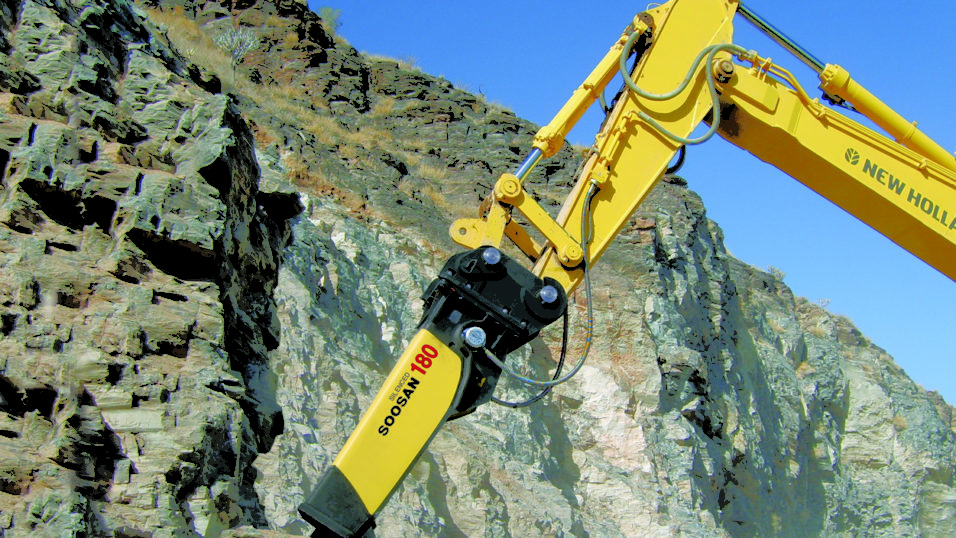

Soosan SB180 TSB boom rock mining
